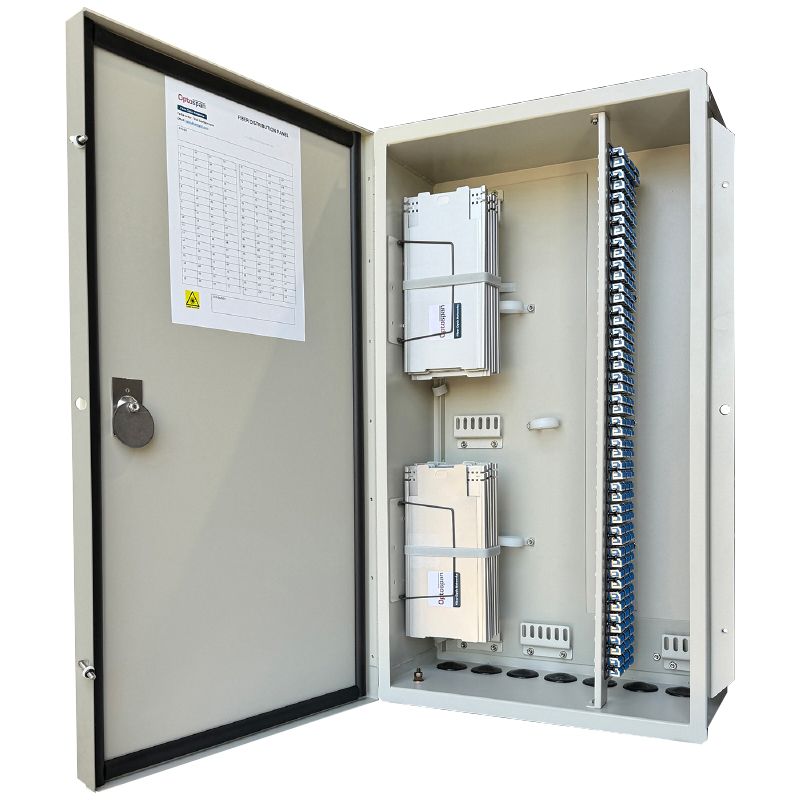

144 Fiber SC Adapter Multimode NP-288 Outdoor Waterproof Patch Panel

144 Fiber SC Adapter Multimode NP-288 Outdoor Waterproof Patch Panel

OptoSpan NP-288 Outdoor Waterproof Patch Panel provides a secure housing for fiber optic connectors and cables and is engineered to withstand exposure to severe environmental conditions, making it a crucial component for a variety of industrial and telecommunications applications.This NEMA 4X Outdoor Waterproof Patch Panel with Lockable gasketed doors and stainless steel hardware has two sections for incoming and outgoing fiber optic cables.

This NP-288 Outdoor Patch Panel feature OptoSpan's EXCLUSIVE SC ADAPTER PANELS WITH IP5X COMPLIANT AUTOMATIC DUST SHIELD (no dust cap required on front side). This rattle-free LC adapter panel uses advanced SC adapters with a unibody design to prevent laser eye exposure while also providing the best dust and contaminant protection. The dust cover opens automatically when the SC connector is inserted and closes when it is removed. No more network outages due to dirty SC connectors!

This 16 Gauge Aluminum Body (Beige Polyester Powder Coat) Outdoor Waterproof Patch Panel includes Qty. 12 12-fiber Multimode (OM4) fiber adapter panels for a total of 144 SC (72 Duplex SC) ports. This high-performance Outdoor Waterproof Patch Panel is ideal for use in data center 10G/40G/100G networks.

Never again worry about a lost or misplaced dust cap! This NP-288 Outdoor Waterproof Patch Panel features OptoSpan's industry-leading Select Series SC Adapter Panels which have a hands-free fully automatic shutter mechanism for dust protection. There's no need to manually apply dust caps to the SC ports on this panel. The white translucent shutters on these IP5X rated dust protection adapters provide laser protection as well.

This NEMA-4X outdoor waterproof patch panel includes cable management accessories such as cable ties, cable clips, and a grid label sticker to help support and organize cables, reducing the chance of damage or tangling.

Optional accessories include splice trays, pigtails, and multi-fiber (MTP/MPO) cables, which can be pre-configured for this panel.

Exclusive Feature

IP5x Rated SC Adapter Panels with Automated Dust Shield

This panel features OptoSpan's exclusive SC Adapter Panels with an IP5x compliant 100% automated dust shield to keep the SC connectors clean and prevent network failures. No Dust Caps Required!

“The leading cause of packet corruption and link downtime in the fiber optic network are the contaminated connectors.”

Key Features and Benefits:

• Dimensions: 33”L x 18.92”W x 8.31”D (31lbs)
• Compatible with OptoSpan High Density MTP-LC Cassettes
• Optional Fiber Splicing Version is Available.
• Includes NP-288 Enclosure & (12) 12F SC Adapter Panels (72 Duplex SC)
• Made in USA - Buy American Act Compliant

To request more information or quantity pricing for the OptoSpan 144 Fiber SC Multimode NP-288 Outdoor Waterproof (NPP4-SDCSDC-6XT), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
