OptoSpan Rack Mount Fiber Patch Panels

OptoSpan's Select Rack Mount Termination and Splicing Enclosures provide a convenient, secure and organized housing for fiber optic connections and terminations, as well as a central point for splicing fiber optic cables for data center and telecom applications. Rack mount fiber enclosures are frequently employed in a diverse range of applications, including data centers, telecommunication rooms and enterprise networks. These Rack mount fiber termination enclosures are crucial to keeping fiber optic networks running smoothly and efficiently because of the roles they play in organizing and safeguarding fiber optic connections.

Rack Mount – Select RM Series (Premium)

Rack Mount - Matrix Series

bba-logo

Exclusive Feature

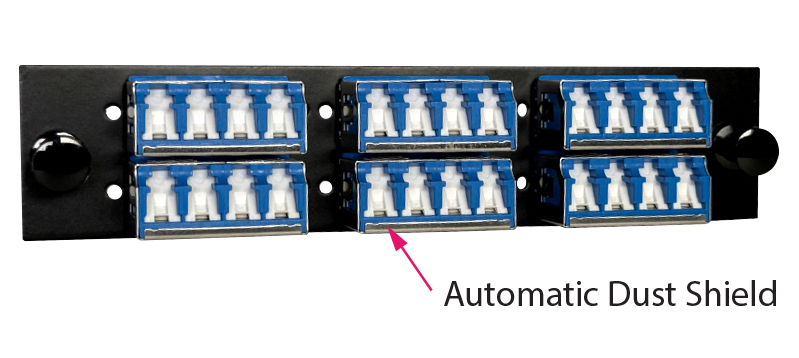

IP5x Rated LC Adapter Panels with Automated Dust Shield

Select Series Patch Panels feature OptoSpan’s exclusive LC Adapter Panels with an IP5x compliant 100% automated dust shield to keep the LC connectors clean and prevent network failures. No Dust Caps Required!

“The leading cause of packet corruption and link downtime in the fiber optic network are the contaminated connectors.”

main-ads-2

Rack Mount Panel Comparison

OptoSpan RM Series Panel
Specications and Max Capacity
Pre-Terminated Fiber Cable
Compatibility with RM Series Panels
Model# SlotsMax.
Fibers
# HD
Series
Cassettes
# HD Series
Adapter
Panels
# Splice
Trays
SteelFlex-
Armored
SteelPatch
Armored

MTP/MPO 12F - 144F

Breakout LC/SC/ST/FC
 Incl.Incl.Opt.Opt.Opt.Opt.Opt.Opt.Opt.

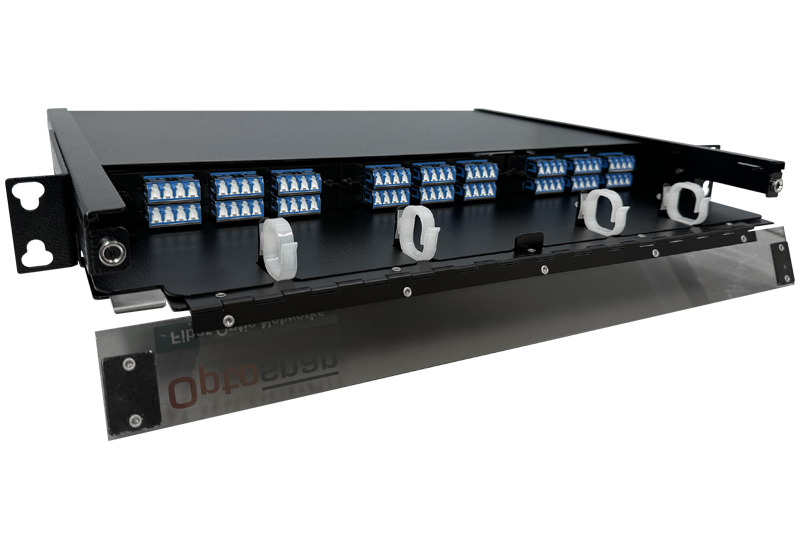

RM-36372333/12F

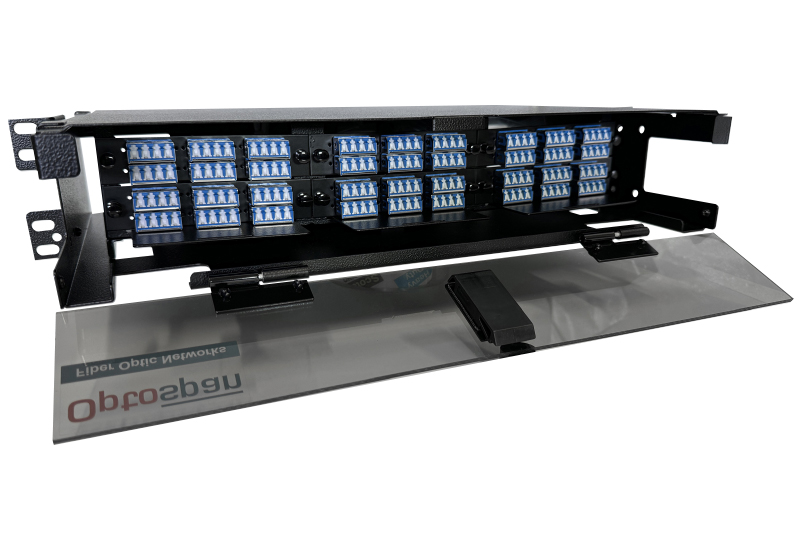

RM-726144664/24F
RM-1441228812126/24F

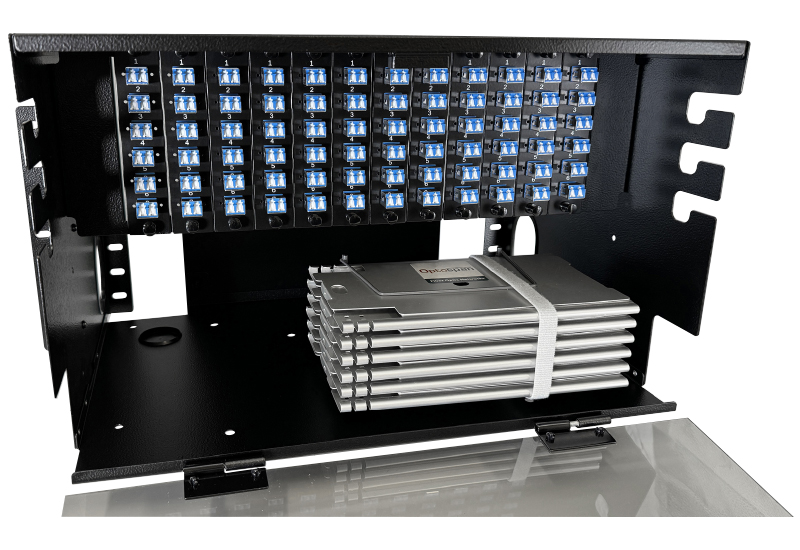

RM-2882457624246/24F
OptoSpan RM Series Panel
Specifications and Max Capacity
Pre-Terminated Fiber Cable Compatibility
with RM Series Panels
Model Type
# SlotsMax.
Fibers
# HD Series
Cassettes
# Select Series
Panels
# Splice
Trays
Cable
Glands for
Entry Ports
SteelFlex-
IP68
SteelMax-
IP68
SteelPatch-
IP68
TPU-IP68
  Incl.Incl.Opt.Opt.Opt.Opt.Opt.Opt.Opt.Opt.
RM-36-LCLC372333/12F
RM-72-LCLC6144664/24F
RM-144-LCLC1228812126/24F
RM-288-LCLC2457624246/24F
RM-36-MDC MDC 3216030
RM-72-MDCMDC6432060
RM-144-MDCMDC128640120
RM-288-MDCMDC2417280240
RM-36-MMCMMC31296030
RM-72-MMCMMC62592060
RM-144-MMCMMC1251840120
RM-288-MMCMMC24103680240
RM-36-SNSN3144030
RM-72-SNSN6288060
RM-144-SNSN125760120
RM-288-SNSN2411520240
