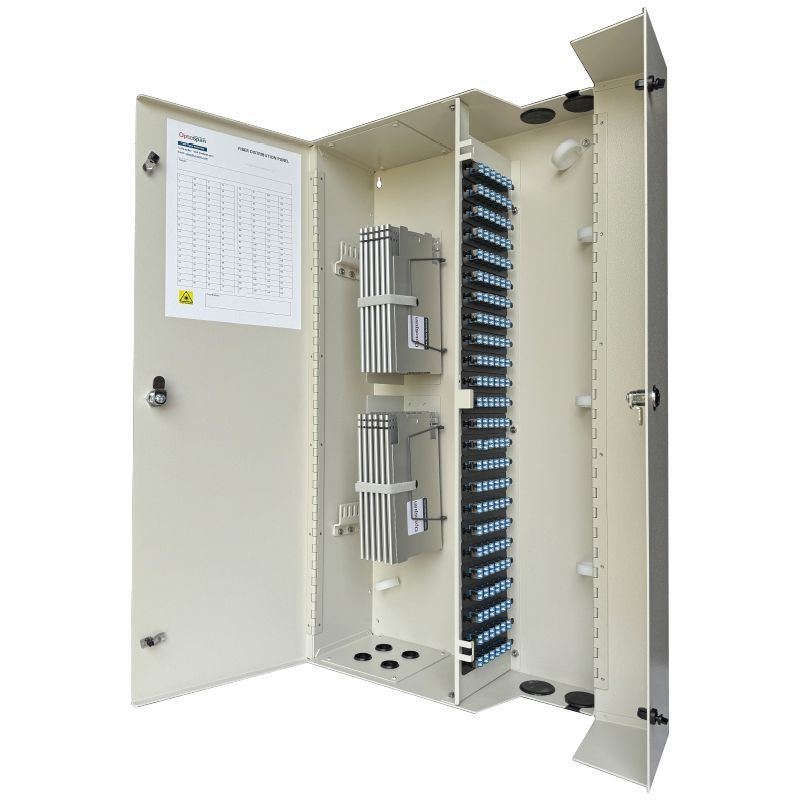

288 Fiber SC Adapter Single-mode WM-288 Wall Mount Patch Panel

288 Fiber SC Adapter Single-mode WM-288 Wall Mount Patch Panel

OptoSpan WM-288 Wall Mount Patch Panel is suitable for a wide range of applications, including data centers, telecommunications rooms, fiber-to-the-home (FTTH) installations, and enterprise networks when rack mounting space is limited.

This WM-288 Outdoor Patch Panel feature OptoSpan's EXCLUSIVE SC ADAPTER PANELS WITH IP5X COMPLIANT AUTOMATIC DUST SHIELD (no dust cap required on front side). This rattle-free LC adapter panel uses advanced SC adapters with a unibody design to prevent laser eye exposure while also providing the best dust and contaminant protection. The dust cover opens automatically when the SC connector is inserted and closes when it is removed. No more network outages due to dirty SC connectors!

This 16 Gauge Aluminum Body (Beige Polyester Powder Coat) Wall Mount Patch Panel includes Qty. 24 12-fiber Single-mode fiber adapter panels for a total of 288 SC (144 Duplex SC) ports. This high-performance Wall Mount Patch Panel is ideal for use in data center 10G/40G/100G networks.

Never again worry about a lost or misplaced dust cap! This WM-288 Wall Mount Patch Panel features OptoSpan's industry-leading Select Series SC Adapter Panels which have a hands-free fully automatic shutter mechanism for dust protection. There's no need to manually apply dust caps to the SC ports on this panel. The white translucent shutters on these IP5X rated dust protection adapters provide laser protection as well.

This wall mount patch panel includes cable management accessories such as cable ties, cable clips, and a grid label sticker to help support and organize cables, reducing the chance of damage or tangling.

Optional accessories include splice trays, pigtails, and multi-fiber (MTP/MPO) cables, which can be pre-configured for this panel.

Exclusive Feature

IP5x Rated SC Adapter Panels with Automated Dust Shield

This panel features OptoSpan's exclusive SC Adapter Panels with an IP5x compliant 100% automated dust shield to keep the SC connectors clean and prevent network failures. No Dust Caps Required!

“The leading cause of packet corruption and link downtime in the fiber optic network are the contaminated connectors.”

Key Features and Benefits:

• Dimensions: 32.3”L x 16.9”W x 6.54”D (30lbs)
• Compatible with OptoSpan High Density MTP-LC Cassettes
• Optional Fiber Splicing Version is Available.
• Includes WM-288 Enclosure & (24) 12F SC Adapter Panels (144 Duplex SC)
• Made in USA - Buy American Act Compliant

To request more information or quantity pricing for the OptoSpan 288 Fiber SC Single-mode WM-288 Wall Mount Panel (WPP9-SDGSDG-6XT), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
