48 Fiber MTP-LC Cassette Multimode WM-48 Wall Mount Distribution Panel

48 Fiber MTP-LC Cassette Multimode WM-48 Wall Mount Distribution Panel

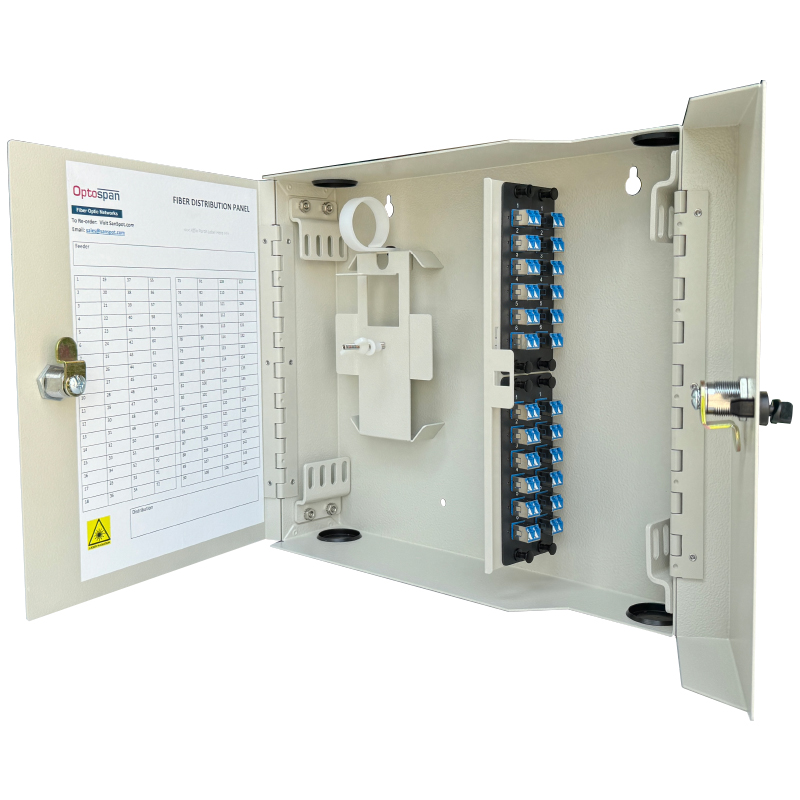

OptoSpan WM-48 Wall Mount Distribution Panel is suitable for a wide range of applications, including data centers, telecommunications rooms, fiber-to-the-home (FTTH) installations, and enterprise networks when rack mounting space is limited.

This 16 Gauge Aluminum Body (Beige Polyester Powder Coat) Wall Mount Distribution Panel includes Qty. 2 24-fiber Multimode (OM4) fiber cassettes for a total of 48 LC (24 Duplex LC) fiber ports in front and 4 MTP Elite (12 Fiber Connector) Male/Pinned rear ports. This Wall Mount Distribution Panel is factory configured for Polarity Method A and ideal for use in 10G/40G/100G networks.

This wall mount patch panel includes cable management accessories such as cable ties, cable clips, and a grid label sticker to help support and organize cables, reducing the chance of damage or tangling.

Optional accessories include splice trays, pigtails, and multi-fiber (MTP/MPO) cables, which can be pre-configured for this panel.

Exclusive Feature

IP5x Rated LC Adapter Panels with Automated Dust Shield

This panel features OptoSpan's exclusive LC Adapter Panels with an IP5x compliant 100% automated dust shield to keep the LC connectors clean and prevent network failures. No Dust Caps Required!

“The leading cause of packet corruption and link downtime in the fiber optic network are the contaminated connectors.”

Key Features and Benefits:

• Dimensions: 14”\L x 12”W x 3.29”D (12lbs)
• Compatible with OptoSpan High Density MTP-LC Cassettes
• Optional Fiber Splicing Version is Available.
• Includes WM-48 Enclosure & (2) 24F MTP-LC Cassettes (4 - 12F MTP Ports)
• Made in USA - Buy American Act Compliant

To request more information or quantity pricing for the OptoSpan 48 Fiber MTP-LC Multimode WM-48 Wall Mount Panel (WPQ4-LDWVZQ-1XT), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
