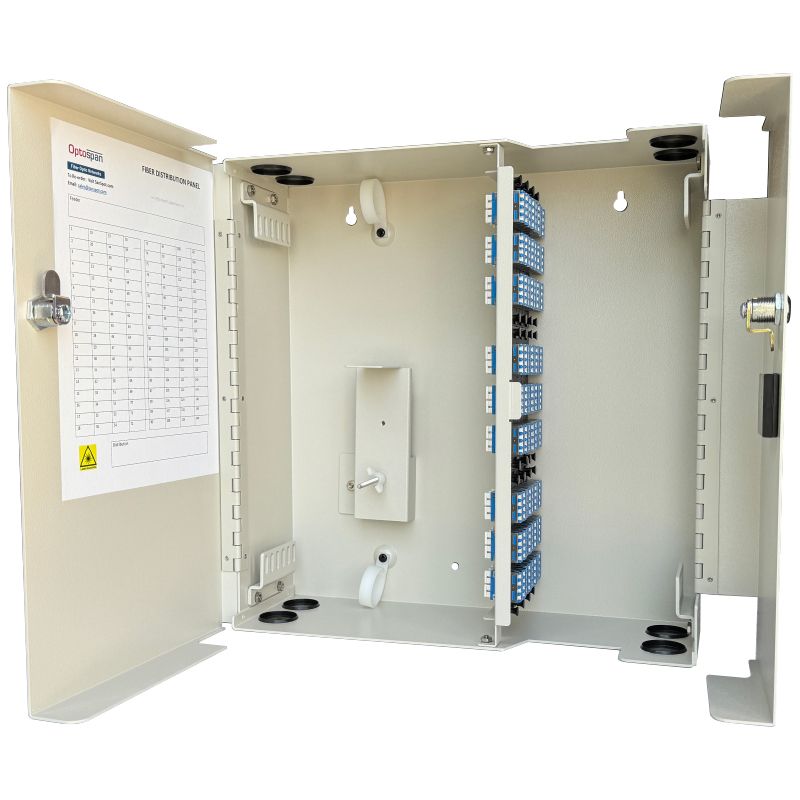

48 Fiber ST Adapter Single-mode WM-144 Wall Mount Splice/Termination Panel

48 Fiber ST Adapter Single-mode WM-144 Wall Mount Splice/Termination Panel

OptoSpan WM-144 Wall Mount Splice/Termination Panel is suitable for a wide range of applications, including data centers, telecommunications rooms, fiber-to-the-home (FTTH) installations, and enterprise networks when rack mounting space is limited.

This 16 Gauge Aluminum Body (Beige Polyester Powder Coat) Wall Mount Splice/Termination Panel includes Qty. 4 12-fiber Single-mode fiber adapter panels for a total of 48 ST (24 Duplex ST) ports. This high-performance Wall Mount Splice/Termination Panel is ideal for use in data center 10G/40G/100G networks.

This wall mount patch panel includes cable management accessories such as cable ties, cable clips, and a grid label sticker to help support and organize cables, reducing the chance of damage or tangling.

Optional accessories include splice trays, pigtails, and multi-fiber (MTP/MPO) cables, which can be pre-configured for this panel.

Key Features and Benefits:

• Dimensions: 16.8”L x 17.3”W x 6”D (13lbs)
• Premium one-piece metal body design
• Includes Qty. 2 - 24F Aluminum Splice Trays with Splice Chips
• Includes WM-144 Enclosure & (4) 12F ST Adapter Panels & Splice Trays
• Made in USA - Buy American Act Compliant

To request more information or quantity pricing for the OptoSpan 48 Fiber ST Single-mode WM-144 Wall Mount Panel (WPP9-TDWTDW-4ST), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
