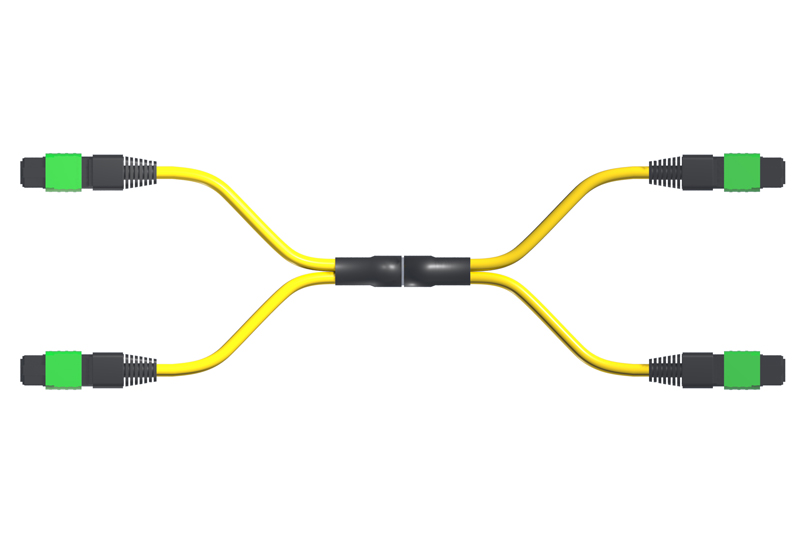

MPO Armored Cable, 24-Fiber, Single-mode, 200ft

60 Meter Single-mode MPO Armored Cable 24 Fiber MPO-MPO Connectors

24 Fiber (12x2) Single-mode (OS2) MPO Armored Cable with MPO(Male)-MPO(Male) connectors. Use this 60 Meter (Approx. 200ft) for 40G/100G 9/125 (OS2) fiber optic links Type: For 40G/100G Networks - MPO Polarity Method A (Straight-through) - Key-up to Key-down (Polarity B or C optional), MPO-MPO. Breakout Section Length - 24in. All Single-mode MTP/MPO connectors are APC (Angled Polish) connectors.

Manufactured using OptoSpan Premium OS2 fiber, SteelPatch Armored (Formerly Light Armored) MPO Armored Cable is specifically designed for light to medium duty indoor/outdoor applications. Its rugged shell with steel and kevlar is 10 times stronger than regular Fiber Optic Cable and has a 40% higher rated range of operating temperature. Optional MTP Elite (US Conec) low loss connectors available. PBPB-JS224LXR60 is ROHS compliant according to ROHS2011/65/EU and come with a 10 year warranty. NOTE: Non-cancellable special order item. Please call to confirm stock. Images are for illustrative purposes only.

OptoSpan PBPB-JS224LXR60 | Key Specifications

• 24 Fiber (12x2)MPO APC/MPO APC MPO Armored Cable
• MPO(Male)-MPO(Male) Connectors
• 9/125µm Yellow OS2 Cable
• 10 Year Warranty
• MPO Armored Cable
• Complete Test Report
• Serialized for Quality Tracking
• Complies with TIA-604-10 and IEC 61754-20
• Custom Configurations Available
