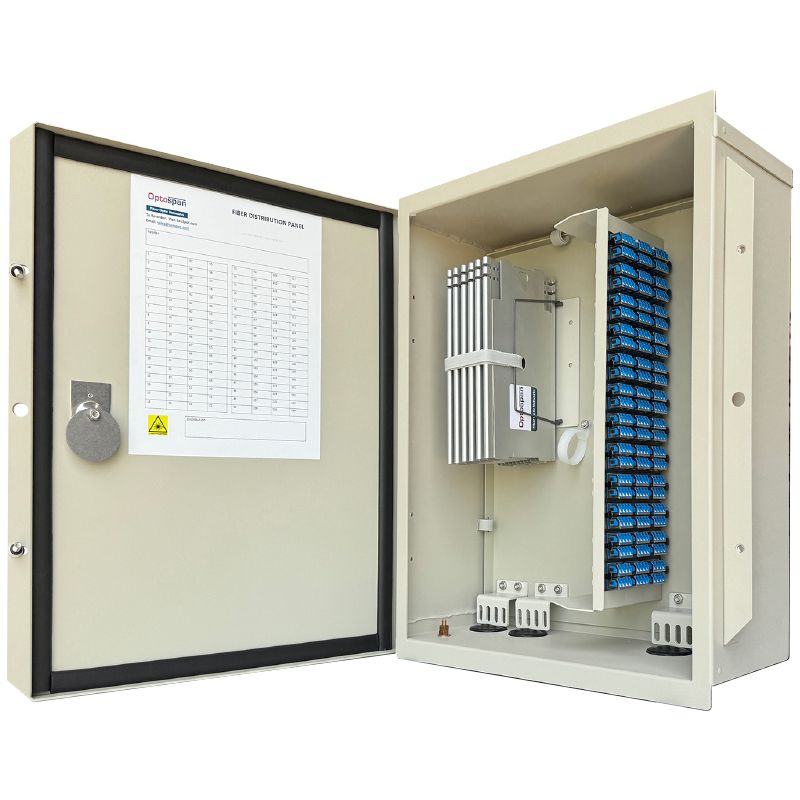

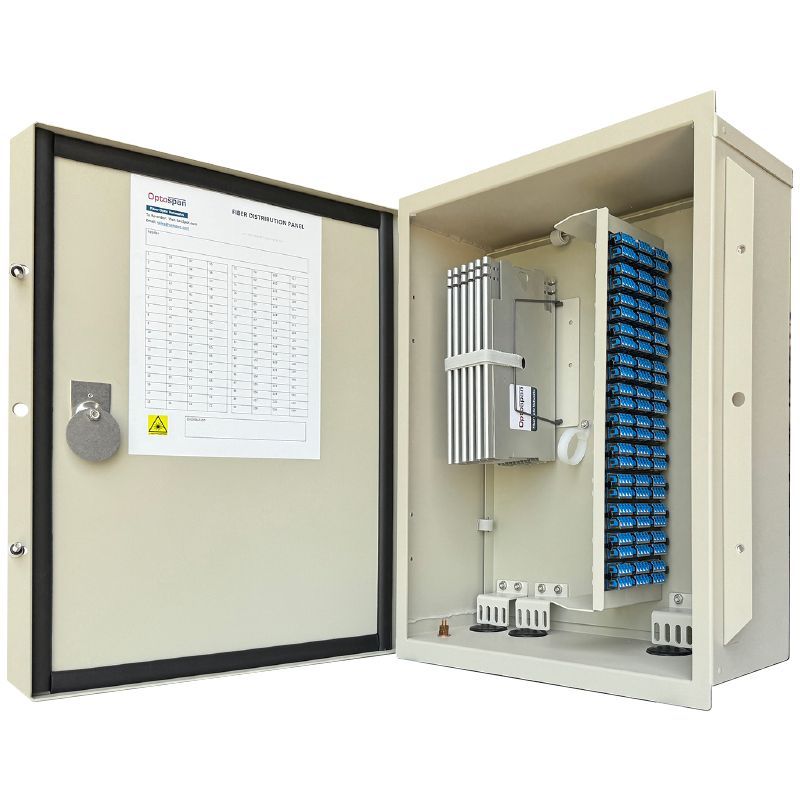

96 Fiber ST Adapter Single-mode NP-144 Outdoor Waterproof Patch Panel

96 Fiber ST Adapter Single-mode NP-144 Outdoor Waterproof Patch Panel

OptoSpan NP-144 Outdoor Waterproof Patch Panel provides a secure housing for fiber optic connectors and cables and is engineered to withstand exposure to severe environmental conditions, making it a crucial component for a variety of industrial and telecommunications applications.This NEMA 4X Outdoor Waterproof Patch Panel with Lockable gasketed doors and stainless steel hardware has two sections for incoming and outgoing fiber optic cables.

This 16 Gauge Aluminum Body (Beige Polyester Powder Coat) Outdoor Waterproof Patch Panel includes Qty. 8 12-fiber Single-mode fiber adapter panels for a total of 96 ST (48 Duplex ST) ports. This high-performance Outdoor Waterproof Patch Panel is ideal for use in data center 10G/40G/100G networks.

This NEMA-4X outdoor waterproof patch panel includes cable management accessories such as cable ties, cable clips, and a grid label sticker to help support and organize cables, reducing the chance of damage or tangling.

Optional accessories include splice trays, pigtails, and multi-fiber (MTP/MPO) cables, which can be pre-configured for this panel.

Key Features and Benefits:

• Dimensions: 22”L x 17.1”W x 7.1”D (20lbs)
• Premium one-piece metal body design
• Optional Fiber Splicing Version is Available.
• Includes NP-144 Enclosure & (8) 12F ST Adapter Panels (48 Duplex ST)
• Made in USA - Buy American Act Compliant

To request more information or quantity pricing for the OptoSpan 96 Fiber ST Single-mode NP-144 Outdoor Waterproof (NPP9-TDBTDB-4XT), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
